MTL1373 Potentiometer input converter and trip amplifer. 1 channel for 3 wire potentiometer sensors, 2 alarm outputs.

The MTL1373 is a single channel signal converter which can accept a potentiometer input and converts the signal to 4-20mA.

Potentiometers between 100Ω and 100kΩ can be connected. 2 trip amplifiers are also provided with level settings. The module may be powered directly or via the PBUS17.5 power feed in the DIN rail.

MTL1000 range

Product Code Description

INM1000  MTL1000 range - Instruction Manual

MTL1000    MTL1000 range - Common Specifications

MTL1141    1ch 2/3/4 wire transmitters

MTL1142    1 ch + smart 2 wire + 3/4 wire transmitters

MTL1143    1ch + smart 2 wire + 3/4 wire transmitters + Repeat output

MTL1144    Voltage/current input isolator Datasheet

MTL1145    Loop powered current repeater Datasheet

MTL1171    Thermocouple Input Converter Datasheet

MTL1172    Resistance Temperature Device Input Converter

MTL1173    Potentiometer Input Converter

MTL1211    Switch / Proximity Detector with Line Fault Detection

MTL1249    Signal Converter - Voltage / Current

MTL1271    Loop powered thermocouple converter

MTL1272    Resistance Temperature Device Input Converter

MTL1321 new  Signal converter and Trip Amplifier

MTL1341 new  Transmitter repeater and Trip Amplifier

MTL1371 new  Thermocouple input converter and Trip Amplifier

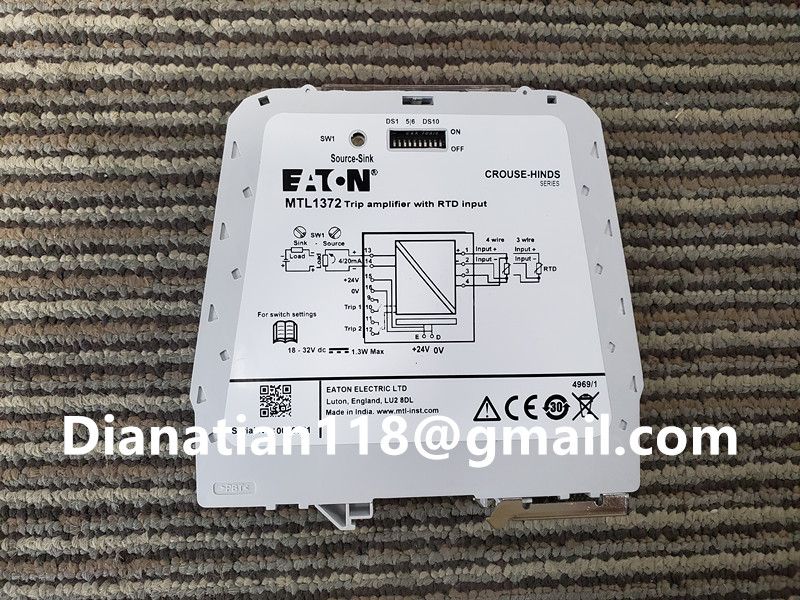

MTL1372 new  RTD device input converter and Trip Amplifier

MTL1373 new  Potentiometer input converter & Trip Amplifier

MTL1991    Power Feed and Alarm Module Datasheet
